daily driver, work truck and competition truck built to try and do everything. Of course, this means that its a bit of a money pitt.

Land Rover

Defender

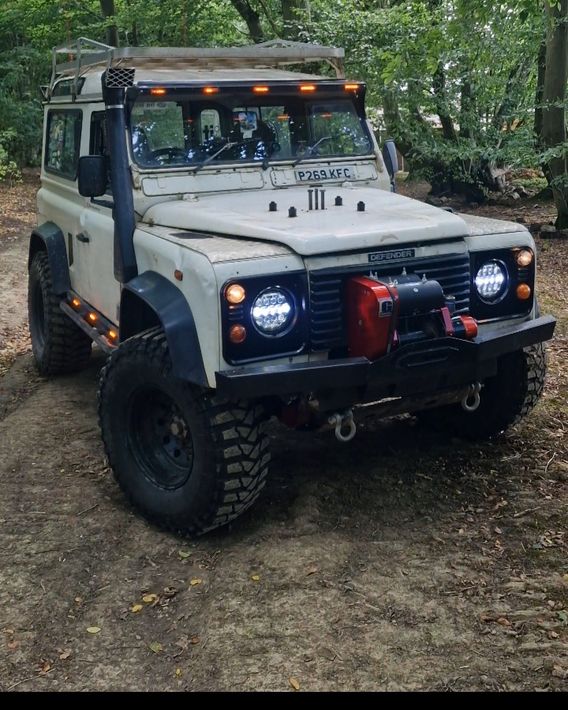

1996 Land Rover Defender 90 @the_white_money_pitt

rocker sliders with 3 side markers wired in with the side lights

Rock Slider

custom close bull bar to not affect approach angle, and mount winch to

bullbar

Steering guard

used in conjunction with there steering lock for security

optimill quick release steering boss

rear heavy duty springs 2762

used on the front to give 1 inch of lift. are very long a soft to help with front articulation.

HD range rover rear springs (used on the front)

Removed

font and rear sumo steering bars with discovery 1 drop arm attached to steering box to increase life of ball joint and easier maintenance.

Sumo steering bars

Safari ARMAX Snorkel

this is used on just the driver's side. this is due to a large heavy toolbox mounted by the door over the arch which caused the truck to lean over the rear driver's wheel. the spacer helps level the truck

+1 Inch Rear Spring Spacer

SPARE WHEEL CARRIER - EXTRA HEAVY DUTY, CHASSIS MOUNTED

combined with a discovery 1 1.2 ratio transfer box, this allows for normal high-range gearing, but with lower low-range gearing.

4.10 HD crown and pinion gears

285/75r16. on 8x16inch black steel rims -32 offset

axle trusses top and bottom on both front and rear axles

axle trusses

raptor dash to hold cb, switches, radio and gauges.

have egt and boost gauges.

raptor dash

momo jet steering wheel

ARB Air Locker

ashcroft HD halfshafts front

ashcroft hd Cvs

ashcroft hd halfshafts rear

heavy-duty diff cases that can be unscrewed from the axle to allow observation of the diffs internals without removing the diff.

devon 4x4 HD diff cases

kit compramises of
+2 inch front and rear shock mounts (front shock mounts have dislocation cones built in) which use pin to pin shocks instead of the LR standard ring to pin shocks.

HD cranked rear trailing arms

dislocation cones for the rear. They also have a hook on the end to catch the spring to stop it not being able to relocate and stop you max extending your shocks and damaging them.

front spring Clamps that allow the spring to tilt to gain maximum travel on the front (better described on his website)

11 inch terrafirma 4 stage adjustable dampners

extended brake lines

intended bumpstops

gwyn lewis challenge +5 inch suspension flex kit

Bought from cannonservices on ebay.
Installed the side markers and run of side lights

Defender external sun visor

G12 twin motor winch with bow 2+ motors.

Rebuilt and custom painted anodised red and black with brand new gearbox.

G12 twin motor

Old style exmoor trim bucket seat.
Worn and torn and only a little bitta tape. But comfy bucket seats. With removable bases so can still actually get to the battery easily

Defender bucket seats

Front a rear air lockers

Standard rear 90 springs taken off the rear and onto the front. This it to increase the spring rate to hold the winch. And are similar rated springs to most HD front springs.

Standard rear 90 springs, but on the front.

2 optima yellow top YTS 55 batteries wired in series to give 24v to run the winch. 110amp 24v altinator (from a bus) where the aircon pump should be charge them.

Pair of optima yellow top batteries in series (24v)

Size 285 75r16
On the original freestyle alloys truck came with. Bought as K2 are so so heavy and hard on truck motorway speeds. Also will make things more challenging in the mud on Al terrains.
Will get photos up soon.

Comforser cf1100

Really really good oem looking lights. Cannot fault them and compete with modern car headlights.
Low beam lighting is outstanding and can't get that with lightbars.
Just be aware they are headlights. No headlight will ever be as bright as spots or Lightbar.

HOMAGE 7 INCH LED HEADLIGHT - CHROME (5700K)

Aluminium
No clue who made it but was installed from factory in south Africa.
All I know is it's solid and works like a tree slider ;)

Roof rack

Look like standard ones but are angled more horizontal so are 30mm wider.
Can't fault them at all. Really flexible so fold and bend rather crack.
I cable tie them in place so the can easily tear away from the body and be reinstalled.

+30 wheel arches

Standard extended size.
FYI ordered red. They are clearly orange in person

Extended bumpstops

Instagram

Removed 2nd row seats and built a box in front of the drawer to have a longer flat surface. DC in the gap between the side of the Drawer and wheel arch. (60Ah Battery, DC/DC charger, Victron Solar Charger etc.
now past 320,000km on original engine. Thinking about doing diff rebuilds with lockers


2009 Land Rover Defender 110 Puma

MUDSLUT

1995 Land Rover Defender 300TDI
BP1 Old man Emu shocks and 2.5 inch lift
Terrafirma front radius arms
Maxxis Razr MT 285/75 R16
ARB bullbar and Rear Diff protector
Ultra Carbon winch
Riji Dij spare tyre carrier
Riji Dij gullwing and drop down table
Front Runner gullwing windo box
Front runner 36L water tank
Itech dual battery system
Kickass solar panel
Ocam flat roof rack
Drifta 270 awning
Outback Solution Gear canvas door storage

1995 Land Rover Defender 110

1999 Land Rover Defender 110 Td5

Twin arb airlockers
Braced diff
Bilstein shocks
Land rover bullbar
Warn winch
Hybrid turbo 18psi boost
255/85r16 km2 on disco rims
16x8 disco rims rebarreled with internal beadlocks(waiting for a set of play tyres)
Custom rear swing out wheel carrier with quarter chop
Rock sliders
Arb rear diff cover
